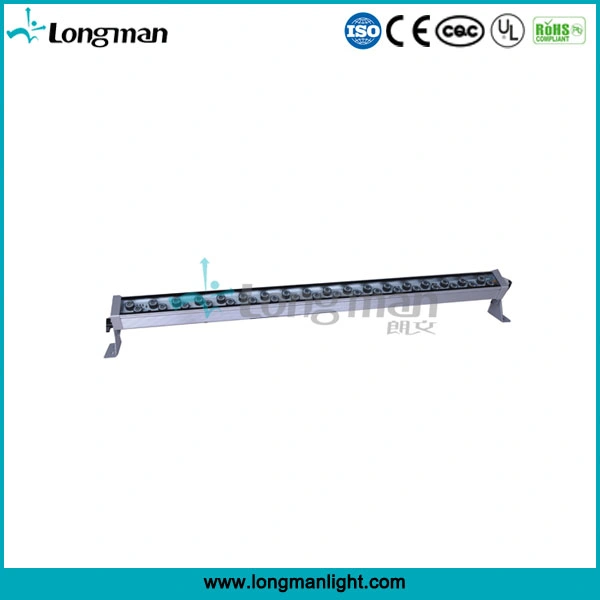

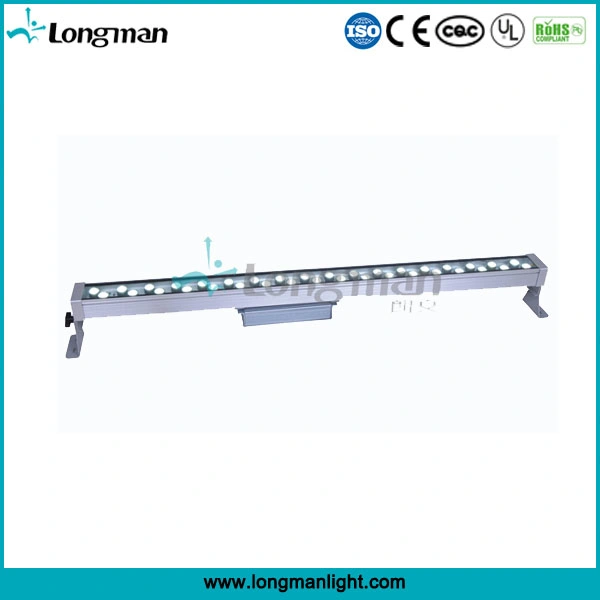

outdoor 36pcs 3w white linear led wall washer for bridge
Feature:
1)Sivewave dimming, no affect to Grid net when dimming.
2)SMPS inout and output with both Male/Female waterproof connector,easy replace,could connect 30 PCS fixture as daisy train.
3)DC cable connect with power supply through side cover, by 2 chips Male/Female waterproof connector
4)Could choose sidecover bracket or slide bracket for installation
5)5140Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle.
6)Stable color performance, Ra>85.
7)Cree XPE/XPG LED,less comsume, longer longevity, precise optical design
8)Independent circuit driving, each 1000mA,even ampere distribute.
9)Field Angle standard 30°,could choose other angle, and also frosted piece and 60*1° third optical piece.
10)Lampbody enough for LED heatsink, heat-seperated driving part design make sure more than 10000 Hours Longevity for SMPS and Main board.
11)Side cover With waterproof air valve to balance pressure,get rid of mosuisture on glass innerface.
Project:
Specification:
FAQ:
led wall washer light from China professional led wall washer light manufacturer.
If you have specific parameters and requirements for our led wall washer light,customization is available.
Feature:
1)Sivewave dimming, no affect to Grid net when dimming.
2)SMPS inout and output with both Male/Female waterproof connector,easy replace,could connect 30 PCS fixture as daisy train.
3)DC cable connect with power supply through side cover, by 2 chips Male/Female waterproof connector
4)Could choose sidecover bracket or slide bracket for installation
5)5140Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle.
6)Stable color performance, Ra>85.
7)Cree XPE/XPG LED,less comsume, longer longevity, precise optical design
8)Independent circuit driving, each 1000mA,even ampere distribute.
9)Field Angle standard 30°,could choose other angle, and also frosted piece and 60*1° third optical piece.
10)Lampbody enough for LED heatsink, heat-seperated driving part design make sure more than 10000 Hours Longevity for SMPS and Main board.
11)Side cover With waterproof air valve to balance pressure,get rid of mosuisture on glass innerface.
Project:
Specification:
| Voltage input | AC 40-240V 47-63Hz,PF>0.9 |
| Volatage Output | DC64V,1000mA driving,Sivewave dimming |
| Rated Power | 64W(@220V 50Hz) |
| Luminaire Efficiency | >0.9,Light Effiacy >80lm/W |
| LED Lumens | 36pcs*3W Cree XPE total 5140 Lumens |
| LED CCT | 28000K-8000K optional, standard 3200K |
| Field Angle(10%) | standard 30 °(61680Cd on axis),8°,15°,45°,60°,60*1°Etc optional |
| Control mode | Sivewave dimming,DimmerPack DSP1220 controlled by DMX |
| PWM frequency | PWM>7.8KHz,video flcker free |
| Housing material | Extrusion 6063,anodized Matte balck, customized other color and barndoor |
| Safty | Class II, 3C 2.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP65 |
| Operate temperature | -20~+45ºC,Light board peak temperature rise 25ºC |
| Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
| Weight | 5KG,with double yokes or slide bracket |
| Size | 1045*122*71mm |
Exhibitions:
Shipping:
Our products can be shipped by Sea, by Air, or by Express.which methods to be used is based on
the weight and size of the package, and with consideration of customer's requirements.
by sea: 20-40days;
by air: 5-10days ;
by express: 3-6days
Why choose us:
1. Price: we are factory, able to offer better price .
2. Good quality: we are experienced in quality control; Through CE, RoHs,UL certification.
3. On time delivery: delivery the goods on time;
4. Professional seller: good communication in patient and well know our products;
5. MOQ: depent on different lights.
6. ODM&OEM :good ODM&OEM and custom engineering services.
FAQ:
| 1. Are you a factory or trading company? Yes , We are a factory. |
| 2. Where is your factory located? How can I visit there? Our factory address is : No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro. All our clients, no matter where you are from, all are most welcome to visit us ! |
| 3. Which products we have? We produce different kinds of LED Light . Our product: A. LED Moving Spot and Wash; B. Studio Light; C. Indoor Parcan; D. Professional Wash; E. Audience and DJ; F. Outdoor Parcan; G. Outdoor Washer; H. Black Light; J. Control System; K. Dramatic architectural and landscape lighting. |
| 4. How to get the latest price? If you want the latest price, Please Email or call us with the items names or NO. What are you interested in ,together with your details(name,details address,telephone,etc),we will send to you as soon as possible. |
| 5. Does the products have any certificate? Yes, our products have CE,ROHS ,UL and SGS certificate . |
| 6. What's the Payment method? All methods can be discussed. |
| 7. How to Place an order? Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details,phone/fax number,destination,transportation way ;Product information:item number,size,quantity,logo,etc. |
led wall washer light from China professional led wall washer light manufacturer.
If you have specific parameters and requirements for our led wall washer light,customization is available.
